Explore our highly-engineered single-axis and direct-drive positioners, structured for payloads from 3.5kg to 120kg.
Established as a pioneer under the name Blue Icon (Tianjin) Technology Co. Ltd. in 2005 (also widely recognized in global trade circles as BIT-CCTV founded in 2007), we have dedicated almost two decades to engineered motion control, surveillance peripherals, and high-load positioning dynamics.
As a key national high-tech enterprise, we operate a vertically integrated 10,000 m² manufacturing plant utilizing state-of-the-art multi-axis CNC machines, dynamic environmental chambers, and high-precision torque testing beds. With an allocation of over 10% of annual revenue into continuous research and development, we have secured over 50 national patents and developed robust global partnerships spanning more than 50 countries.
Learn More About Blue Icon
An in-depth engineering overview to assist system architects in selecting the optimal motion mechanical interface.
Ideal for heavy loads that require self-locking configurations. When power is severed, the mechanical gear structure retains physical positioning without active brake consumption.
Zero backlash and extreme responsiveness. Equipped with closed-loop servo encoders, our direct-drive models achieve rapid tracking speeds up to 100°/s with absolute feedback accuracy.
Every rotator enclosure is treated against marine corrosion (C5-M rating), built from cast T6061-aluminum or marine-grade stainless steel, and sealed to meet IP66 or IP67 ingress protection standards.
Proven design paradigms built for high durability, structural rigidity, and seamless software integration.
The BIT-PT510 is a high-performance worm-gear drive unit supporting up to 10kg (22lb) top load. Engineered with micro-stepping motors, it yields pan range profiles of 360° continuous and a tilt range of ±60° at maximum angular velocities of 30°/s. Excellent for coastal installations, border defense, and forest wildfire thermal detection arrays.
Weighing only 3.5kg, this miniature positioner handles up to 3.5kg (7.7lb) payloads. Ideal for portable deployment systems, vehicle mounting, and applications requiring localized high-efficiency optical arrays.
Delivering tracking speeds up to 100°/second with a 10kg payload capacity. Equipped with robust mechanical worm-gear drive in tilt (axis -90° to +40°) to assure high stability under wind load.
Our classic engineering design with 50kg (110lb) top-load capacity. Built for extreme maritime environments, border security, radar housing orientation, and heavy multispectral payloads.
How global system integrators deploy our pan-tilt units across mission-critical verticals.
Combining heavy-duty rotators with dual thermal and visible cameras to monitor shipping lanes, identify intrusions, and verify maritime vectors over distances exceeding 10km.
Long-range optical sensors require static positional accuracy to prevent false alarms. Our positioners maintain sub-0.05° tracking stability in high mountain wind zones.
Equipped with specialized direct-drive motors, these devices integrate with tracking radars to orient anti-UAS counter-measures and communication links in real-time.
Orientation of laser scanners, volumetric lidars, and meteorological sensors in smart ports, automated mines, and large petrochemical facilities requiring Ex-proof certifications.
A structured breakdown of our secondary capabilities in tracking peripherals and auxiliary mechanical assemblies.
Available in Light Duty, Medium Duty, and Heavy Duty classes. Payload capacities range up to 150kg to support large sensor payloads.
Read More
Single-axis rotators built for azimuth or elevation tracking. Extremely space-efficient and cost-effective for single-axis automation requirements.
Read More

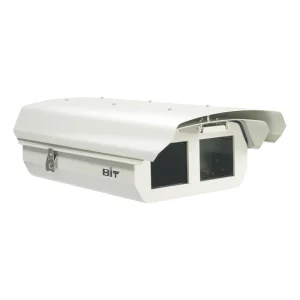

Dual-window outdoor housings built for dual thermal/optical payloads. Complete with wiper systems, integrated heaters, and sunshields.
Read More
Procuring positioning mechanisms from Chinese advanced manufacturing centers yields significant structural advantages for Western and global engineering firms:
Key technological shifts defining the future development of heavy-duty motion control platforms.
Future systems require more than just motor control. Integrating AI edge processing chips allows the pan-tilt unit to dynamically track objects at high angular velocities without relying on centralized computing hubs.
Integrating real-time sensors for gear backhash, torque load, moisture levels, and temperature checks. These diagnostics provide remote operations teams with predictive maintenance alerts to prevent field failures.
Innovative dual-locking designs that switch between high-speed direct drive for target tracking and worm-gear configurations for low-power static holding. This balance addresses both speed and power requirements.
Overview of our QA testing facilities, assembly rooms, and deployment sites across the globe.
Read detailed white papers and selection guides authored by our lead mechanical engineers.
Faced with customized payloads and varying outdoor environments, selecting the correct mechanical supplier requires verifying testing practices, quality standards, and machining tolerances.
Designed for tight footprints, mobile vehicle setups, and lighter camera systems without sacrificing positioning accuracy or environmental protection.
Explore the standard classifications of pan-tilt units, including payload ratings, mechanical drive systems, housing designs, and typical application fields.
Our manufacturing and assembly processes are certified under strict international quality guidelines.
Detailed engineering answers to key technical questions from system integrators and global buyers.
Payload capacity is determined by three main elements: torque output of the internal drive motor, mechanical strength of the load-bearing bearings, and dynamic offset (moment load). Static load (dead weight) is less critical than moment torque, which increases under high wind loads or rapid accelerations. Blue Icon calculates dynamic load limits using finite element analysis (FEA) to ensure structural safety under operational wind speeds up to 120km/h.
Our worm-gear positioners utilize high-precision copper worm wheels paired with hardened steel alloy worms. These components are factory-calibrated using spring-loaded anti-backlash designs and self-compensating gear assemblies. For zero-backlash applications, our direct-drive servo-driven pan rotators bypass mechanical gearing entirely, eliminating wear-induced hysteresis and ensuring accurate positioning over millions of duty cycles.
Yes. For harsh environments, we offer stainless steel structures (SUS316L) or anodized cast aluminum coated with epoxy-polyester marine-grade paints (C5-M corrosion rating). Ingress seals are constructed from high-durability fluorosilicone rubber, protecting against saltwater exposure, chemicals, and fine dust entry (IP66/IP67 rating).
Our systems natively support legacy RS-485 interfaces utilizing Pelco-D and Pelco-P industrial telemetry codes. Modern network-based configurations are equipped with ONVIF Profile S/G/T compliant IP modules. This configuration allows plug-and-play integration with standard Video Management Systems (VMS) such as Milestone, Genetec, and Avigilon.
Depending on payload class, units run on DC 24V, AC 24V, or AC 110V/220V power systems. Small models draw approximately 15W under normal conditions. Heavy-duty versions, equipped with internal thermostatic heaters and active mechanical brakes, can draw up to 100W under cold weather conditions (-40°C) with active heating cycles.
Blue Icon's engineering products are integrated into international networks across all five continents.
Complete your deployment with protective outdoor housings, mounting brackets, and mobile positioning units.
